SANTAN想天86标准底盒不拘传统的创新力学设计，更稳固的内部构造。可避免施工所带来的故障隐患。多重安全设计、真材实料，精工打造缔造简约美学品质生活。

SANTAN Type 86 bottom box is not limited to traditional innovative mechanical design. More stable internal structure can avoid the failure caused by construction. Multi-safety design, genuine materials, precision work to create a simple aesthetic quality life。

串联自由 / 一体成型 / 厚实安全 / 防变形防灰土

Tandem freedom  /   Integral molding  /  Thick and safe  /  Anti-deformation and anti-dust soil

想天照明致力于提供安全的用电环境，用心之处细节细微呈现。

86型底盒是指电工底盒，宽8.6厘米，高8.6厘米，因为长宽都是86 mm，所以俗称86底盒。

SANTAN LIGHTING is committed to providing a safe electricity environment; the details of the intentions are presented in detail.

Vertical and horizontal connection

definition Freedom

横联竖联 自由定义

四面轻松组合

特有的组合方式 / 想天86标准底盒，特有的组合方式，无须加购连接片。卡扣连接方式，可四面轻松组合，实现横联与竖联的随意切换。

Unique combination mode / SANTAN Type 86 bottom box, unique combination mode, no need to purchase additional connecting pieces. Be easily combined on all sides, to realize the free switching between horizontal connection and vertical connection.

Through-type connection buckles

贯通式联扣





点击可查阅大图

标准间距，一扣即合

Standard spacing, buckle well immediately

独创卡扣、四向连接 / 一扣即稳简单方便，无需连接工具，节省安装时间，提升工作效率。

Original buckle, four-way connection/one buckle is stable, simple and convenient, without connecting tools, saving installation time and improving work efficiency.

Large space to accommodate wires

Through type inlet wire

容线大空间

贯通式进线

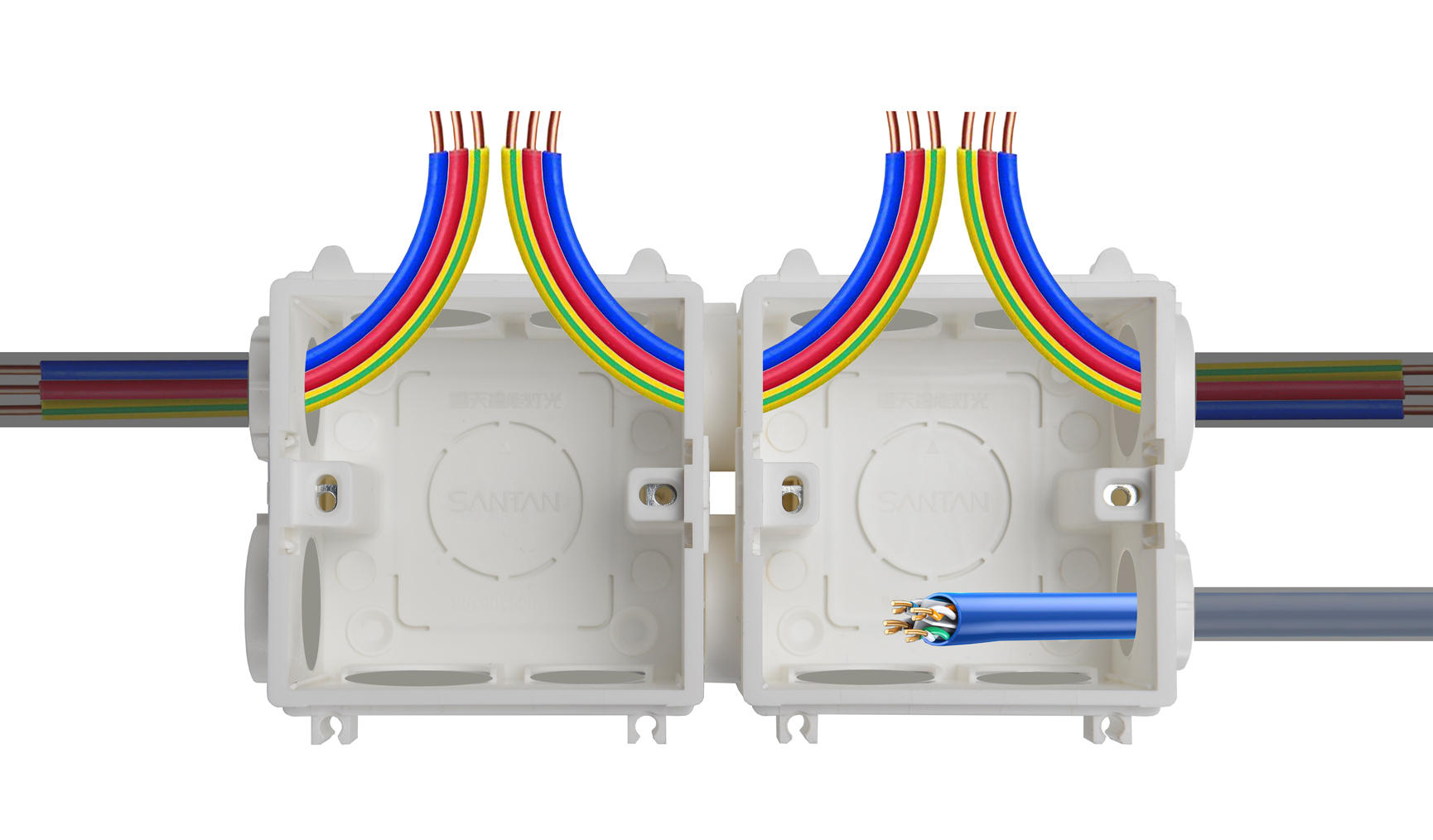

自由延伸、无限串联 / 想天86标准底盒形成贯通式的链接空间，满足多方位，多组走线需求，无需借助外力，可自由组合，满足各种可能。

Free extension, infinite series connection/SANTAN Type 86 bottom box forms a through connection space, which meets the needs of multi-directional and multi-group wiring. It can be freely combined without external force to meet various possibilities.

Architectural aesthetics

源于建筑美学的设计





点击可查阅大图

一体成型 / 采用一体注塑工艺，结构稳定抗压，耐冲能力强，延长产品的使用寿命。

独有的加厚设计 / 坚固耐用，根据市场反应的施工困难，针对性的设计加强结构，应对多种复杂情况并提供解决方案。

Integral molding/injection molding process, stable structure, high pressure resistance, strong impact resistance, prolonged product service life.

Unique thickening design /sturdy and durable, according to the construction difficulties reflected by the market, targeted structural design is strengthened to deal with various complicated situations and provide solutions.

Multiple safeguard structure

Better safety

多重保障结构

安全更为出众

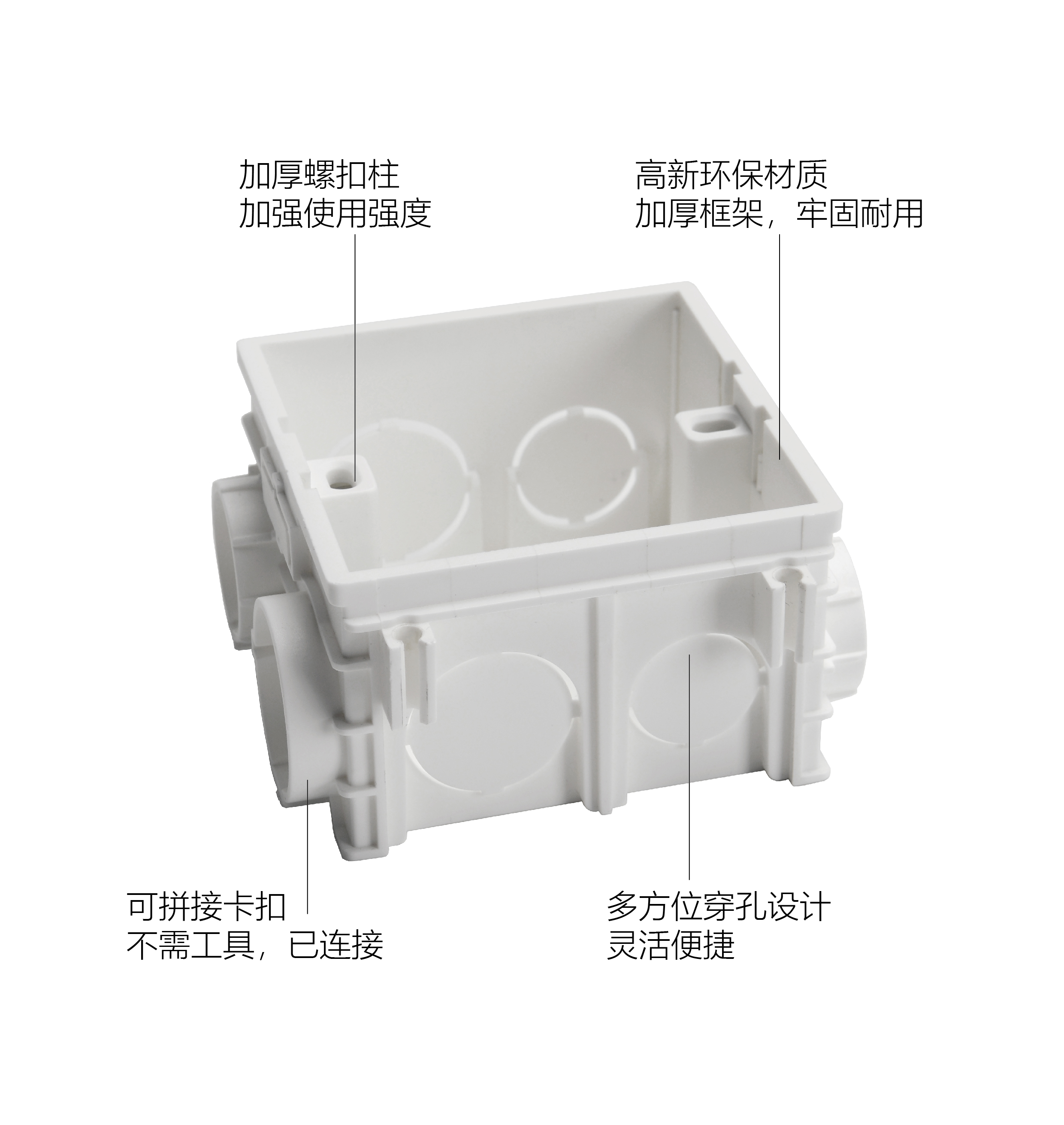

浮动式加厚螺母 / 螺母可进行左右调节，当开孔有偏差时，可以调整面板的水平，且螺母采用加厚设计，增加耐用持久度，满足电工需求。龙骨双层加厚设计 / 结构更稳固，经久耐用。

Floating thickened nut/nut can be adjusted left and right. When the hole is deviated, the horizontal plane of the panel can be adjusted. The nut is thickened to increase its durability and meet the needs of electricians.

Double-layer thickened keel design/ structure is more stable and durable

More safe and practical

than you think

关于安全实用

远超您的想象

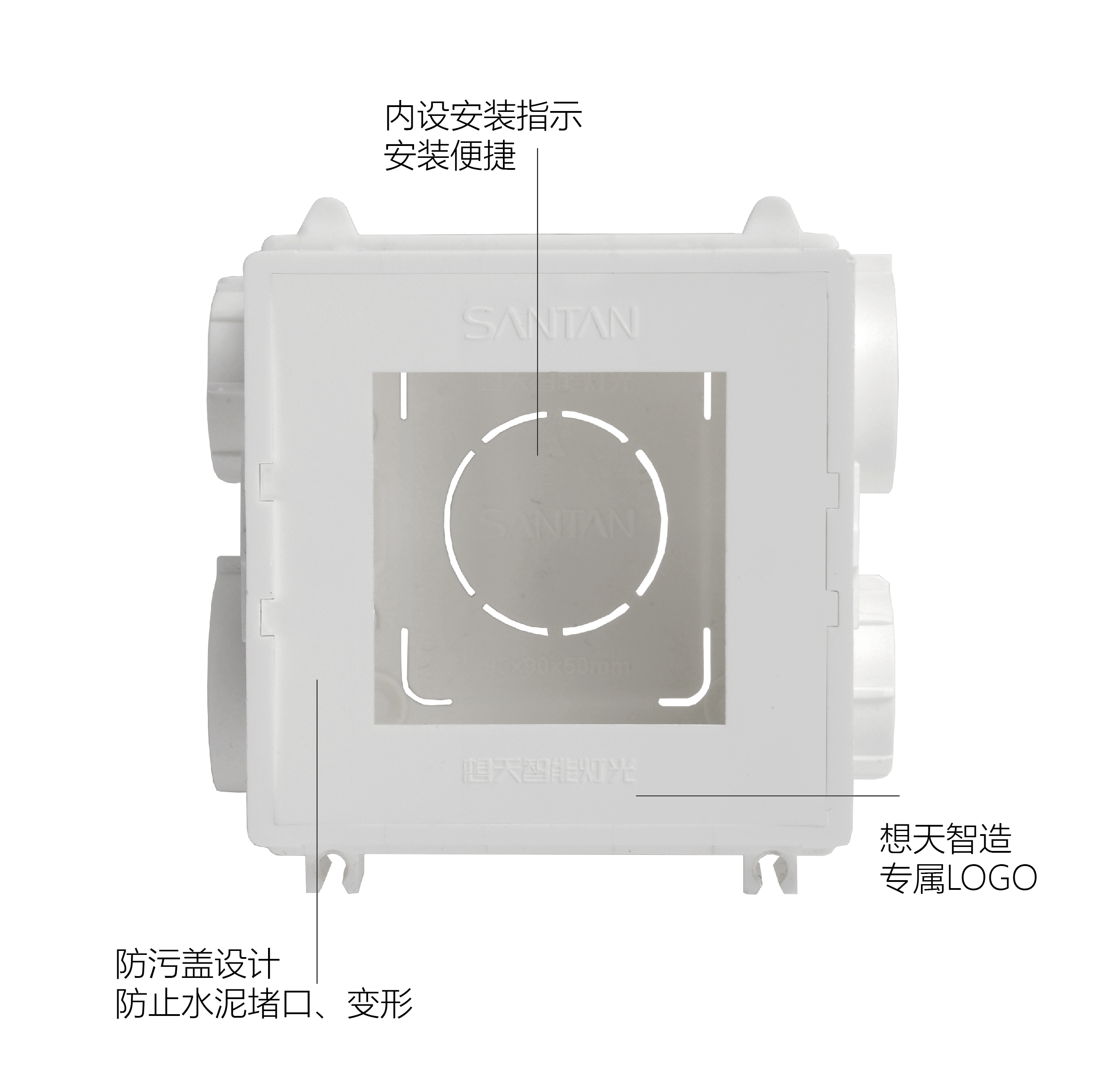

附加多功能盖板 / 多功能卡扣式盖板，无需安装螺丝，盖板直接扣在底盒上。在装修过程中防止水泥浆和腻子进入底盒。

Additional multifunctional cover plate/multi-function buckle type cover plate, without installing screws, cover plate can be directly buckled on the bottom box. In the process of decoration, prevent cement slurry and putty from entering bottom box.

Humanized design

人性化设计

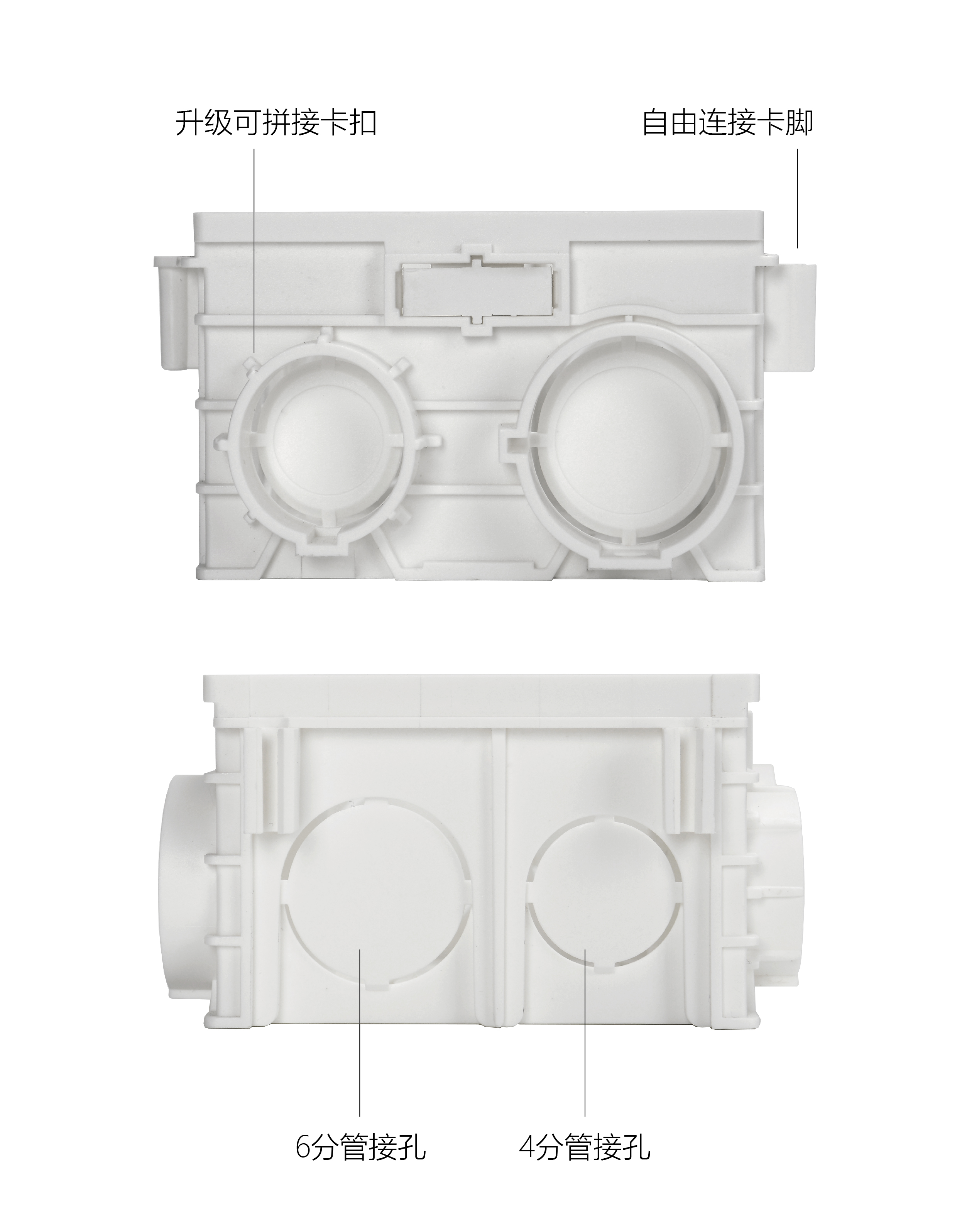

敲落孔设计 / 运用力学原理，制作敲落的合适结构厚度，敲落后平整无毛边，接线时不会刮伤电线。

Knock-off hole design/using mechanical principle, make appropriate tapping structure thickness, flat and free of burrs after knock-off, it won't scratch the wires during wiring.

Design for environmental protection

设计，为地球设想





点击可查阅大图

阻燃原生环保材质 / 材质运用阻燃PC原生料、双重阻燃，耐高温、抗腐蚀 抗冲击使用更安心。

Flame retardant original environmental protection material/using flame retardant PC raw material, double flame retardant, high temperature resistant, corrosion resistant, impact resistant, and more safe to use.

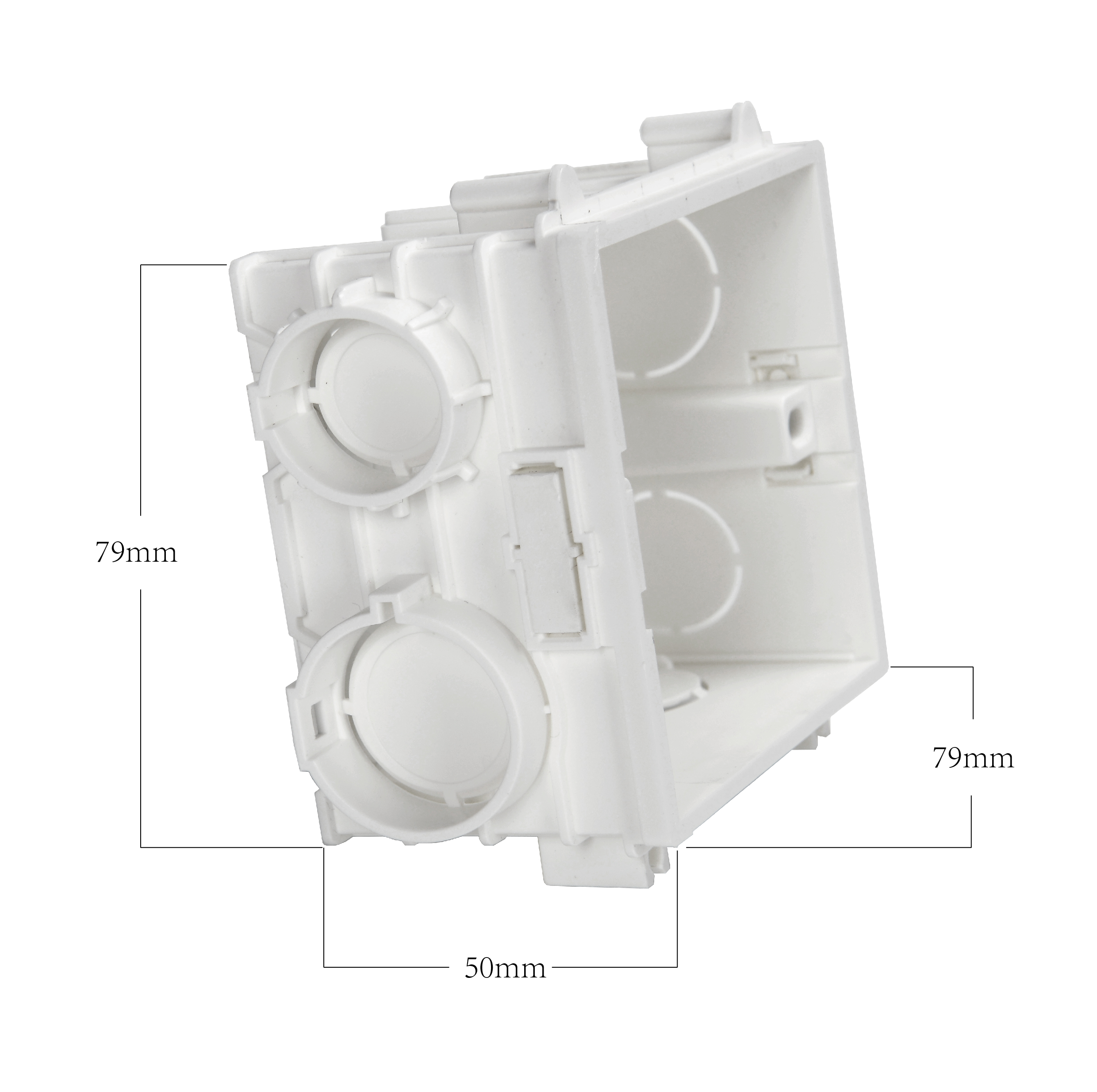

86 standard size,more powerful performance

86标准体型，性能强大

品牌：SANTAN想天照明

名称：86标准底盒

尺寸：如图

颜色：白色

材质：PC阻燃

工艺：一体注塑

形式：卡扣式连接
